Multiple Channel Liquid Dispensing Systems
IVEK’s multiple channel liquid dispensing systems provide precise simultaneous delivery of identical fluid volumes. These systems can be custom configured to support multiple dispensing channels from a single controller module.
The multi-channel systems are ideal for applications requiring multiple dispensing nozzles or multiple stations for full-scale automation. The systems can be made to have expansion capability which will allow production output to grow with increasing demand. All channels may be active independently as needed. Full interfacing via I/O, PLC and PC connections are available as standard features. The Eurocard design provides easy upgrades and troubleshooting is simple and fully supported.
View our multi-channel liquid dispensing products below.

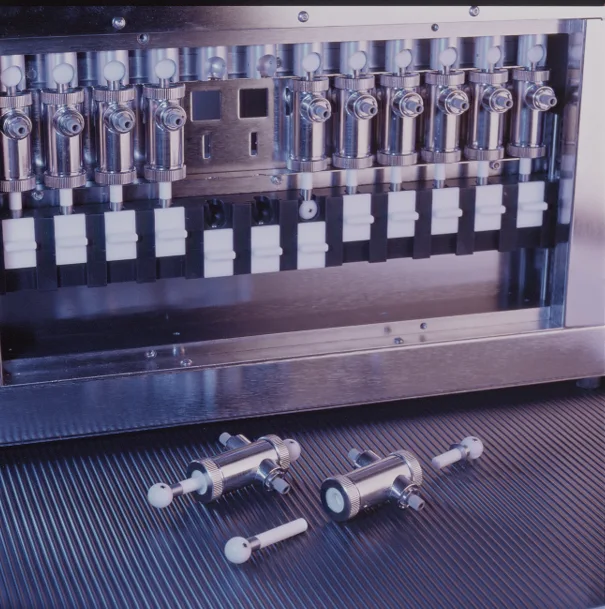

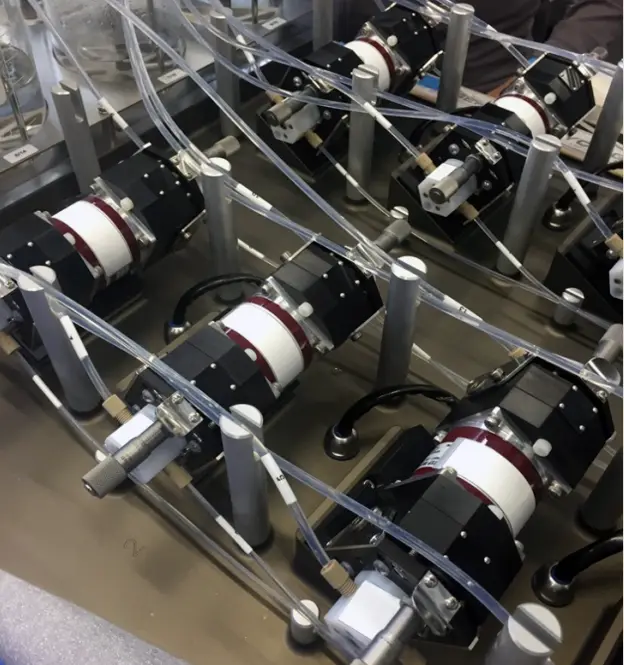

Multiplex Controller/ Actuator/Pump Module
Designed for applications where simultaneous delivery of identical volumes of fluid is desired. A high-resolution servo-controlled actuator for fluid displacement, coupled with a rotary motion for selective valving can drive 8, 10, or 12 ceramic pump modules at once. Two sizes of actuator are offered depending on size of pump used: a Small Frame or Large Frame, each offering a fine level of resolution across a wide range of volumes.
Interface connections include PLC interface, EtherNet/IP™ connectivity and RS232 computer interface. All parameters are digitally selected via these connections or touch screen interface, with the controller providing very accurate and precise fluid dispensing requiring no mechanical displacement adjustments.
Learn More

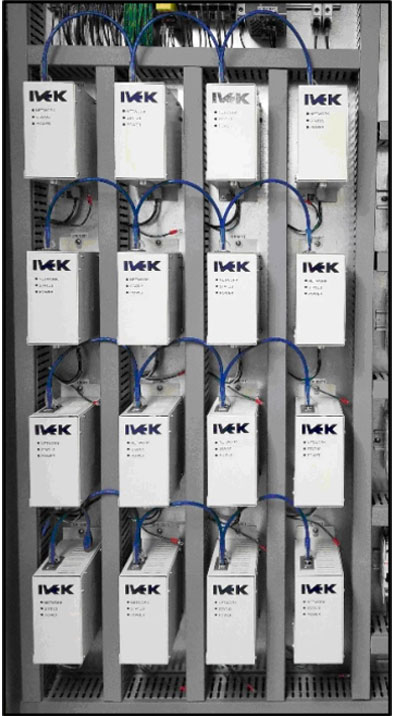

DigiSpense® 4000 Panel Mounts
IVEK’s DigiSpense® 4000 Panel Mount is an ideal solution for integrators or machine builders looking to incorporate multiple dispensing systems into their own controls architecture. With EtherNet/IP™, ProfiNET, or EtherCAT® capability, the DigiSpense® 4000 Panel Mount offers unmatched compatibility with leading PLCs and factory networks.
The DigiSpense® 4000 Panel Mount’s compact footprint, along with minimal side-to-side clearances, allows multiple controllers to fit into a dedicated cabinet, or to be combined with other control equipment in an existing cabinet. Each controller features terminal block style connectors, ability for the fieldbus to be wired in either a star or ring topology, and multi-color LEDs for local feedback of the status of the network, dispensing state, and power.
Learn More
MultiSpense® 2000 Series
Designed to deliver precise fluid volumes in a multi-channel configuration. Microprocessor-based controller drives multiple linear actuators that operate precision ceramics to displace the desired amount of fluid. Single controllers to 31 channels, with additional controllers, can be interfaced to provide as many channels or pumps as needed. All operating parameters entered via RS232 or remote touchscreen.
Learn More

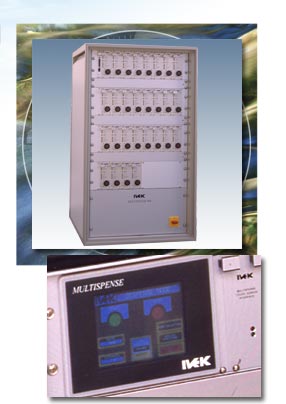

MultiSpense® 900 Series
The Multispense® 900 multiple channel system is similar to the 2000 system except it uses our Rotary pumps. Multispense® systems can be custom configured, thereby providing capability of 31 dispensing channels from a single controller module. Additional controllers can be interfaced to provide as many channels or pumps as needed. These controllers include easily accessible Eurocard channel boards and standard RS232 interface port for programming operating parameters via either a user-supplied computer or touchsceen interface.
Learn More
